Heavy-Duty Protection:10 x 20 Steel Frame Canopy

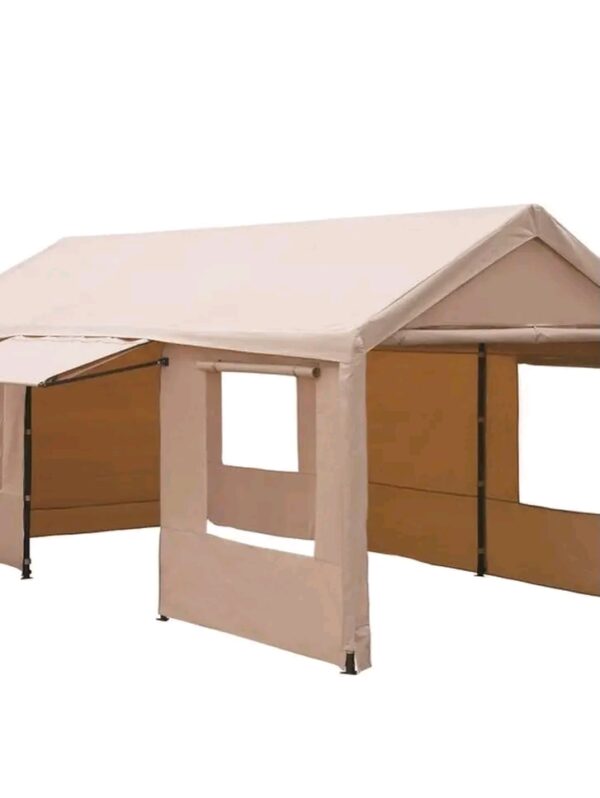

Whether you are hosting an outdoor gathering, protecting vehicles, or organizing a commercial trade booth, reliable shelter is essential. The  10 x 20 steel frame canopy is engineered to deliver reliable protection against sun, light rain, and seasonal weather. Constructed with high-strength powder-coated steel legs and a water-resistant cover, this shelter creates 200 square feet of covered area. To get the most out of your setup, following clear 10×20 steel frame canopy instructions ensures long-term structural safety and stability.

Proper assembly guarantees that your structure stays grounded and secure, preventing accidental tips or canopy damage during windy conditions. This comprehensive guide walks you through the parts, tools, step-by-step setup, and post-assembly maintenance for your KPV shelter.

Essential Steps: 10×20 Steel Frame Canopy Instructions

Setting up your outdoor shelter does not have to be complicated. By following these 10×20 steel frame canopy instructions, two or three adults can complete the assembly process in under an hour.

Step 1: Unpack and Verify Components

Before assembling your 10 x 20 steel frame canopy, unbox all contents on a clean, flat surface. Verify that all components match the parts list:

• Corner, top, and foot connector joints

• Pre-drilled steel leg and roof frame poles

• Heavy-duty poly canopy tarp top

• Bungee cords or tie-down straps

• Ground stakes and guy lines

Step 2: Assemble the Roof Frame Structure

Begin by laying out the roof poles according to the connector markings. Connect the center ridge poles to the rafters using the matching joint connectors. Snap each spring-pin mechanism securely into place to build the top peak of the shelter.

Step 3: Attach the Waterproof Canopy Cover

Drape the heavy-duty fabric top over the assembled roof frame before adding the leg poles. Securing the tarp to the upper frame at ground level prevents excessive stretching and makes fastening elastic bungees easier.

Step 4: Install the Steel Support Legs

With one person lifting a side of the roof structure, insert the upper leg poles into the corner and side connectors. Repeat this process on the opposite side until the structure stands at full height. Attach footplates to the bottom of each steel leg.

Step 5: Anchor the Canopy Securely

Anchoring is a critical part of these 10×20 steel frame canopy instructions. Use ground stakes through each footplate, and tie guy lines from the top corners to secure stakes placed outward at a 45-degree angle.

       +-----------------------------------+  <- Roof Frame Assembly
      /  |                               |  \
     /   |                               |   \
    /    |                               |    \
   /     |                               |     \
  /      |                               |      \
 +-------+-------------------------------+-------+
 |       |                               |       |
 |       |                               |       |  <- Leg Pole Installation
 |       |                               |       |
 |       |                               |       |
[=]     [=]                             [=]     [=] <- Anchored Footplates

Features of the KPV 10 x 20 Steel Frame Canopy

The 10 x 20 steel frame canopy stands out due to its durable construction and user-friendly features:

• Rust-Resistant Steel Frame: Heavy-gauge steel legs with a powder-coated finish resist corrosion and scratches.

• Weather-Defying Fabric Cover: High-density polyethylene cover blocks UV rays and provides water resistance.

• Tool-Free Assembly: Easy-to-use spring-button connectors make following 10×20 steel frame canopy instructions simple without specialized tools.

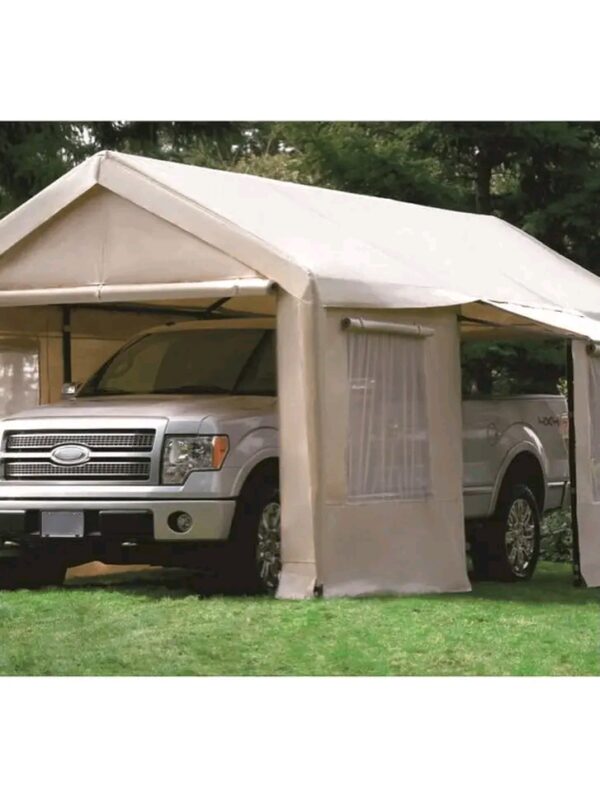

• Versatile Outdoor Use: Perfect for outdoor events, temporary vehicle parking, equipment storage, and farmer markets.

Maintenance & Safety Tips for Your 10 x 20 Steel Frame Canopy

Proper care extends the lifespan of your shelter significantly. Keep these maintenance practices in mind after reading your 10×20 steel frame canopy instructions:

Weather Precautions

The 10 x 20 steel frame canopy is designed as a temporary shelter. Take down the canopy cover before high winds, severe thunderstorms, or heavy snowfall to prevent frame bending or fabric tears.

Fabric Care and Storage

Clean the canopy cover with mild soap and water—avoid harsh chemical cleaners or abrasive brushes. Always allow the cover to dry completely before folding and storing it in a cool, dry place to prevent mold and mildew growth.
